6-meter Distance Sensor UD30

Home Smart Industrial 6-meter Distance Sensor UD30

RS-485 signal output ensures stable and distortion-free data transmission. Widely used for water level monitoring, object distance detection, and various other applications with high flexibility. Utilizes ultrasonic measurement technology for non-contact sensing, eliminating the need for cleaning and simplifying maintenance. IP67 waterproof design, suitable for dusty and humid environments, delivering long-term durability and reliability. – Application areas – Chemical plants, Marine environments, River monitoring, Wastewater treatment plants

Download Center Catalog User Manual User Manual

Optional Code & Specifications

UD30 Code 1 Code 2

Code 1	Range	Code 2	Cable Length
1	1 m	N	2 m, bare wire
2	2 m	Value N	Custom Length bare wire
6	6 m	C	2 m, quick connector
6	6 m	Value C	Cable Length + quick connector

Power Supply	DC24V±10%	Consumption	0.6W
Range	1 m : 50–1000 mm (Blind zone: 0–50 mm) 2 m : 150–2000 mm (Blind zone: 0–150 mm) 6 m : 200–6000 mm (Blind zone: 0–200 mm)
Accuracy	±0.5%	Resolution	1mm
Repeatability	±0.25%	Start-up Delay	<300ms
Communication	RS-485 Modbus RTU	Thread	M30×1.5
Protection	Reverse polarity, short-circuit, overload
Operating Temp.	-20~60°C	Storage Temp.	-40~85°C
Probe Material	Stainless Steel + PC	IP Rating	IP66
Weight	<250g (Without cable)	Cable Length	2 m (default)

ACHIEVEMENT

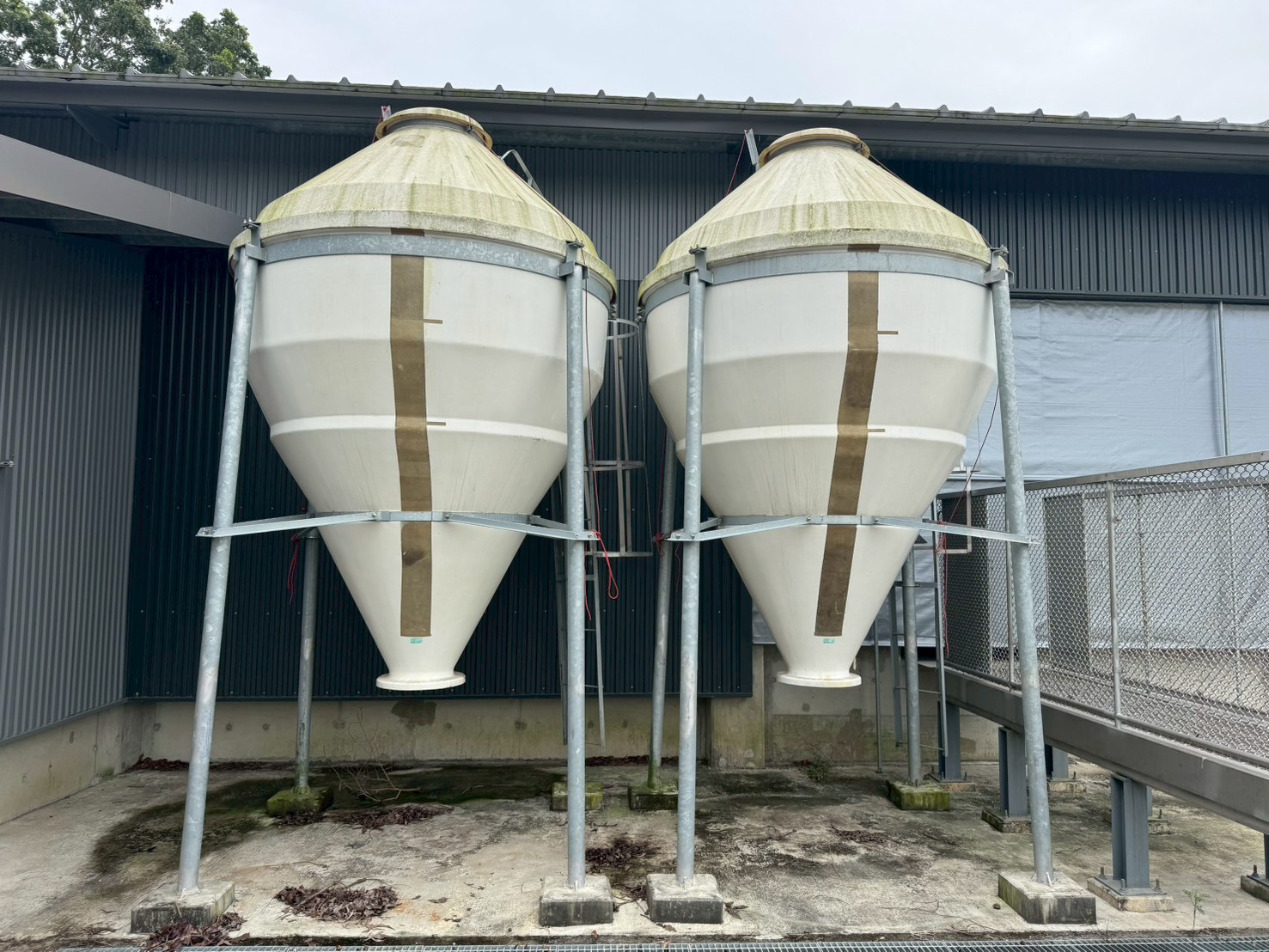

農*所-飼料量監測系統
