100% Made in Taiwan with reliable quality.
Complies with ISO 9001 and EPA panel regulations.
Designed for inspection use with built-in battery
supporting both spot checks and continuous monitoring.
Sensors are CE and FCC certified.
The system enables direct device control for complete IAQ management.
CTV : Temp/RH/CO2/PM2.5 or PM10
CTVP : CO2/HCOC/CO/PM2.5 or PM10
– Application areas –

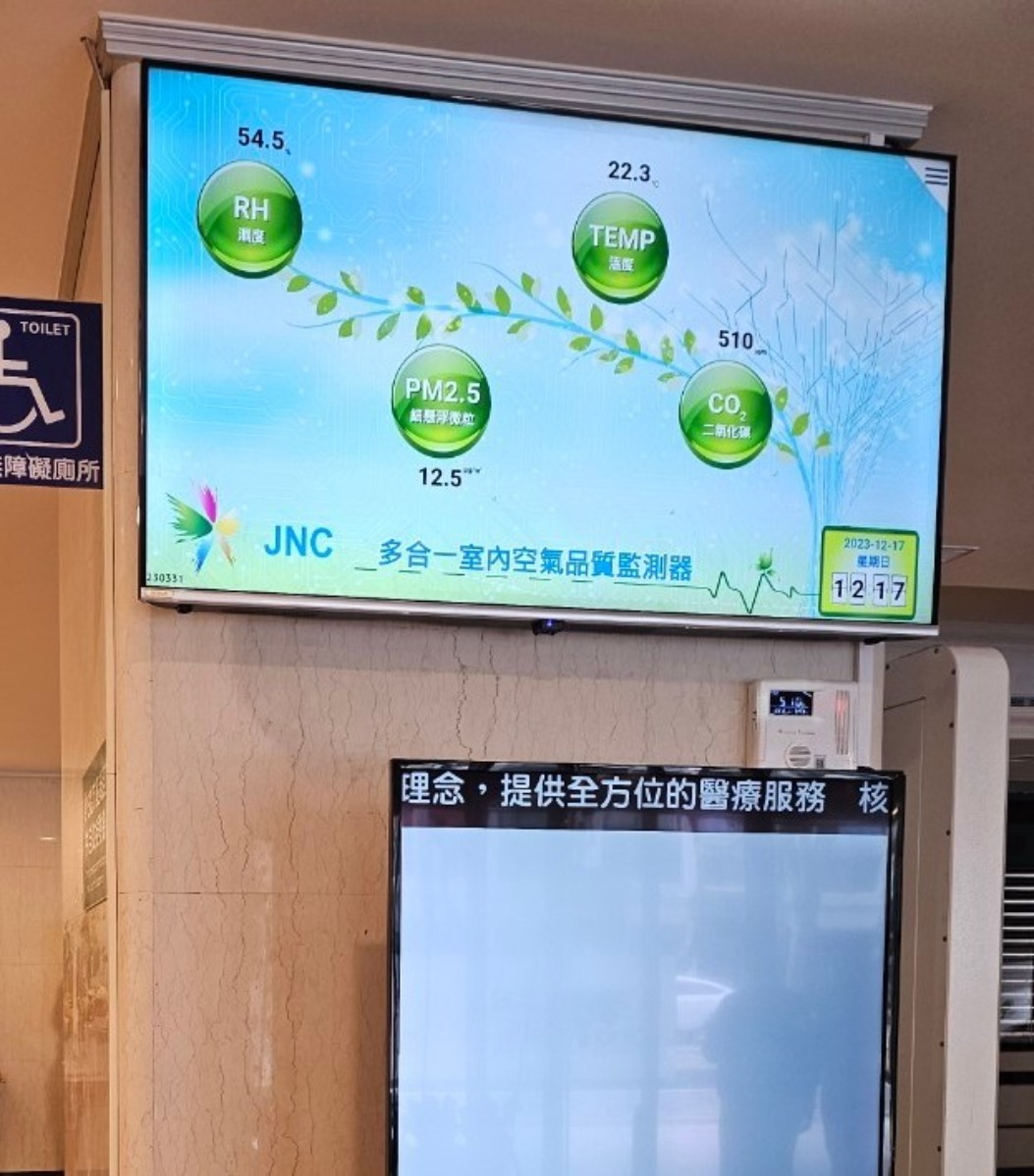

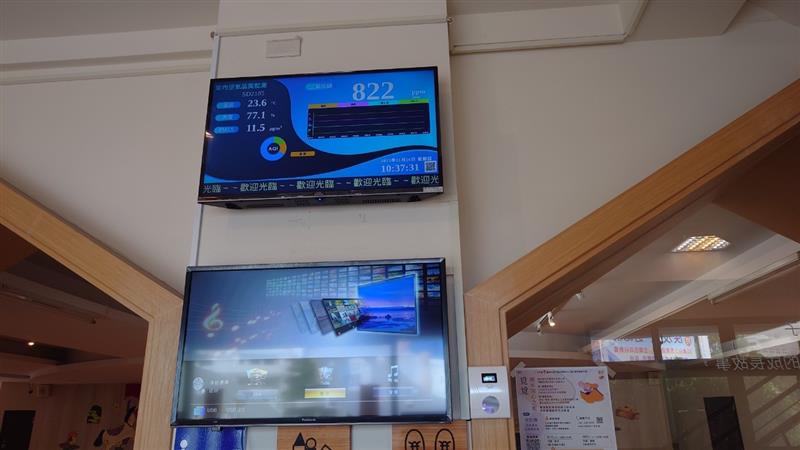

Kindergartens, care centers, offices, malls, restaurants.
Download
Center
Feature of Product
Optional Code & Specifications
CTV
Code
1
Code
2
Code
3
CTVP
Code
1
Code
2
Code
3
| Code 1 | G6 | Code 2 | Sensor | Code 3 | Communication |
|---|---|---|---|---|---|
| N | None | P2 | PM2.5 | N | None |
| B110 | Black/AC110V | 485 | RS-485 | ||
| W110 | White/AC110V | P1 | PM10 | ||
| B220 | Black/AC220V | BT | BT-Mesh | ||
| W220 | White/AC220V |
| Code 1 | G6 | Code 1 | G6 |
|---|---|---|---|
| N | None | B220 | Black/AC220V |
| B110 | Black/AC110V | W220 | White/AC220V |
| W110 | White/AC110V |
| Code 2 | Sensor | Code 3 | Communication |
|---|---|---|---|
| P2 | PM2.5 | N | None |
| 485 | RS-485 | ||
| P1 | PM10 | ||
| BT | BT-Mesh |
| Sensor | ||
|---|---|---|
| Power | Adapter | AC Input : 100~240V (50/60Hz) |
| DC Output : 5V，maximum2A | ||
| Equipment | DC Input : 5V | |
| Power consumption : ≤3W | ||
| Environment | 0~50℃，0%~95% (non-condensing) | |
| Communication | Wi-Fi (Modbus TCP) and RS-485 (Modbus RTU) | |
| Display Panel | 0.96 inch LCD Display measurement name, Numerical value and unit. | |
| Physical Conditions | Dimension | 104x135x40 (W x H x D，mm) |
| Weight | 128g | |
| Installation | Wall mounting/Portable/Desktop | |
| Housing | Material | ABS |
| Certificate | CE、FCC | |
| Item | CTV | Temp/RH/CO2/PM2.5 or PM10 |
| CTVP | CO2/HCHO/CO/PM2.5 or PM10 | |
| Sensor | ||
|---|---|---|
| Power | Adapter | AC Input : 100~240V (50/60Hz) |
| DC Output : 5V，maximum2A | ||
| Equipment | DC Input : 5V | |
| Power consumption : ≤3W | ||
| Environment | 0~50℃，0%~95% (non-condensing) | |
| Communication | Wi-Fi (Modbus TCP) and RS-485 (Modbus RTU) | |
| Display Panel | 0.96 inch LCD Display measurement name, Numerical value and unit. | |
| Physical Conditions | Dimension | 104x135x40 (W x H x D，mm) |
| Weight | 128g | |
| Installation | Wall mounting/Portable/Desktop | |
| Housing | Material | ABS |
| Certificate | CE、FCC | |
| Item | CTV | Temp/RH/CO2/PM2.5 or PM10 |
| CTVP | CO2/HCHO/CO/PM2.5 or PM10 | |
| Display System Specifications | |
|---|---|
| Screen Size | 32 inch |
| Aspect Ratio | 16:9 |
| Display Resolution | 1366x768 |
| Dimensions | 731x463x194 (W x H x D，mm) |
| Without Stand | 713x420x66 (W x H x D，mm) |
| N.W./G.W. | 3.56kg/5.31kg |
| Display System Specifications | |
|---|---|
| Screen Size | 32 inch |
| Aspect Ratio | 16:9 |
| Display Resolution | 1366x768 |
| Dimensions | 731x463x194 (W x H x D，mm) |
| Without Stand | 713x420x66 (W x H x D，mm) |
| N.W./G.W. | 3.56kg/5.31kg |
| Sensor Principle | Range | T90 | Operating Temperature | Resolution | Accuracy | Environmental Equilibrium Time |
|---|---|---|---|---|---|---|
| Temp (Resistance) | -40~125℃ | <60 S | -20~60℃ | 0.1℃ | ±0.4℃ | 10min |
| RH (Capacitive) | 0~100% | <60 S | -20~60℃ | 0.1% | ±3% | 10min |
| CO₂ (Infrared) | 0~10,000ppm | <120 S | 0~50℃ | 1ppm | ±30ppm ±3% of Reading | 10sec |
| PM2.5 (Laser) | 0~1,000µg / m³ | <90 S | -10~65℃ | 0.1 µg / m³ | ±10µg / m³ ±5% of Reading | 5min |
| HCHO (Electrochemical) | 0.01~2.00ppm | <120 S | -10~50℃ | 0.01ppm | ≤±0.02ppm ±2% of Reading | 10min |
| CO (Electrochemical) | 0~100ppm | <180 S | 0~50℃ | 0.1ppm | ±5ppm | 10min |
| PM10 (Algorithm) | 0~1,200µg / m³ | <90 S | -10~65℃ | 0.1 µg / m³ | ±10µg / m³ ±5% of Reading | 5min |
| Sensor Principle | Range | T90 | Operating Temperature |
|---|---|---|---|
| Temp (Resistance) | -40~125℃ | <60 S | -20~60℃ |
| RH (Capacitive) | 0~100% | <60 S | -20~60℃ |
| CO₂ (Infrared) | 0~10,000ppm | <120 S | 0~50℃ |
| PM2.5 (Laser) | 0~1,000µg / m³ | <90 S | -10~65℃ |
| HCHO (Electrochemical) | 0.01~2.00ppm | <120 S | -10~50℃ |
| CO (Electrochemical) | 0~100ppm | <180 S | 0~50℃ |
| PM10 (Algorithm) | 0~1,200µg / m³ | <90 S | -10~65℃ |
| Sensor Principle | Resolution | Accuracy | Environmental Equilibrium Time |
|---|---|---|---|
| Temp (Resistance) | 0.1℃ | ±0.4℃ | 10min |
| RH (Capacitive) | 0.1% | ±3% | 10min |
| CO₂ (Infrared) | 1ppm | ±30ppm ±3% of Reading | 10sec |
| PM2.5 (Laser) | 0.1 µg / m³ | ±10µg / m³ ±5% of Reading | 5min |
| HCHO (Electrochemical) | 0.01ppm | ≤±0.02ppm ±2% of Reading | 10min |
| CO (Electrochemical) | 0.1ppm | ±5ppm | 10min |
| PM10 (Algorithm) | 0.1 µg / m³ | ±10µg / m³ ±5% of Reading | 5min |
