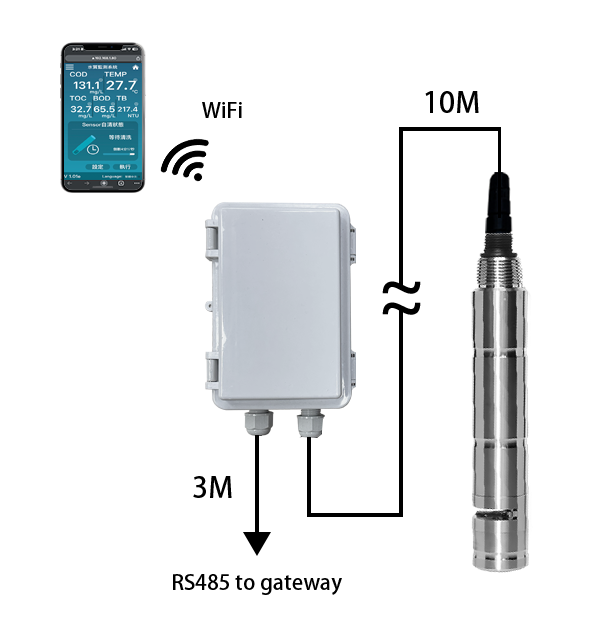

Oil-in-Water Sensor

OIL

‧Principle: fluorescence. A specific wavelength excites oil in water; the emitted intensity gives the concentration. ‧Housing: 316L stainless steel, corrosion resistant. ‧Dual RS-485 and WiFi interfaces; RS-485 runs Modbus. ‧Reagent-free, no secondary pollution, for online monitoring. ‧Standard-solution calibration allows on-site adjustment. ‧Built-in wiper stops fouling; interval is adjustable. ‧Measures and outputs water temperature simultaneously. ‧IP68, tested to CNS 14165 for long-term submersion. –Applications–

Refineries, petrochemicals, metalworking and effluent monitoring.

Download Center Catalog User Manual Product FAQ

Feature of Product

Measurement Principle
Fluorescence method. A specific wavelength of light excites oil substances in water. The emitted fluorescence intensity is measured and converted into oil concentration.

Automatic Cleaning Built-in automatic wiper prevents fouling and removes air bubbles. Adjustable cleaning intervals.

Reagent-Free Measurement

No secondary pollution. For long-term continuous online monitoring. Simultaneously measures water temperature and provides temperature output.

Long-Term Submersion

IP68 protection rating. Tested according to CNS 14165. For long-term continuous monitoring underwater.

Optional Code & Specifications

OIL Code1 Code2Code3

Code1	Sensor Cable	Code2	Gateway Cable	Code3	WiFi Function
N	10 m + Cable End	N	3 m	N	Sensor Output
C	10 m + Quick Conn.	C	3 m + Quick Conn.	N	Sensor Output
Value	Cable Length	Value	Cable Length	W	WiFi Web Page
Value C	Length + Quick Conn.	Value C	Length + Quick Conn.	W	WiFi Web Page

※代碼3若選擇N，代碼2請直接選擇N

Principle	Fluorescence
Range	0~200mg/L
Temp. Range	0°C～50°C
Accuracy	±3% F.S.
Temp. Acc.	±0.5°C
Max. Press.	0.1MPa
Calibration	Standard Solution
Power	9~36VDC
Weight	1.0 kg (with 10 m cable)
Dimensions	Ø50*210mm
Protection	IP68 (CNS 14165)
Housing	316L Stainless Steel
