‧ Equipped with 8 AI/DI inputs and 6 relays
‧ Adjustable AI/DI, baud rate, and ID settings
‧ Mounting: DIN rail and wall-mount options
‧ Suitable for high-humidity and harsh environments (IP66)
–Application areas–
Plant factories, environmental monitoring, and data collection
Download
Center
Feature of Product
Optional Code & Specifications

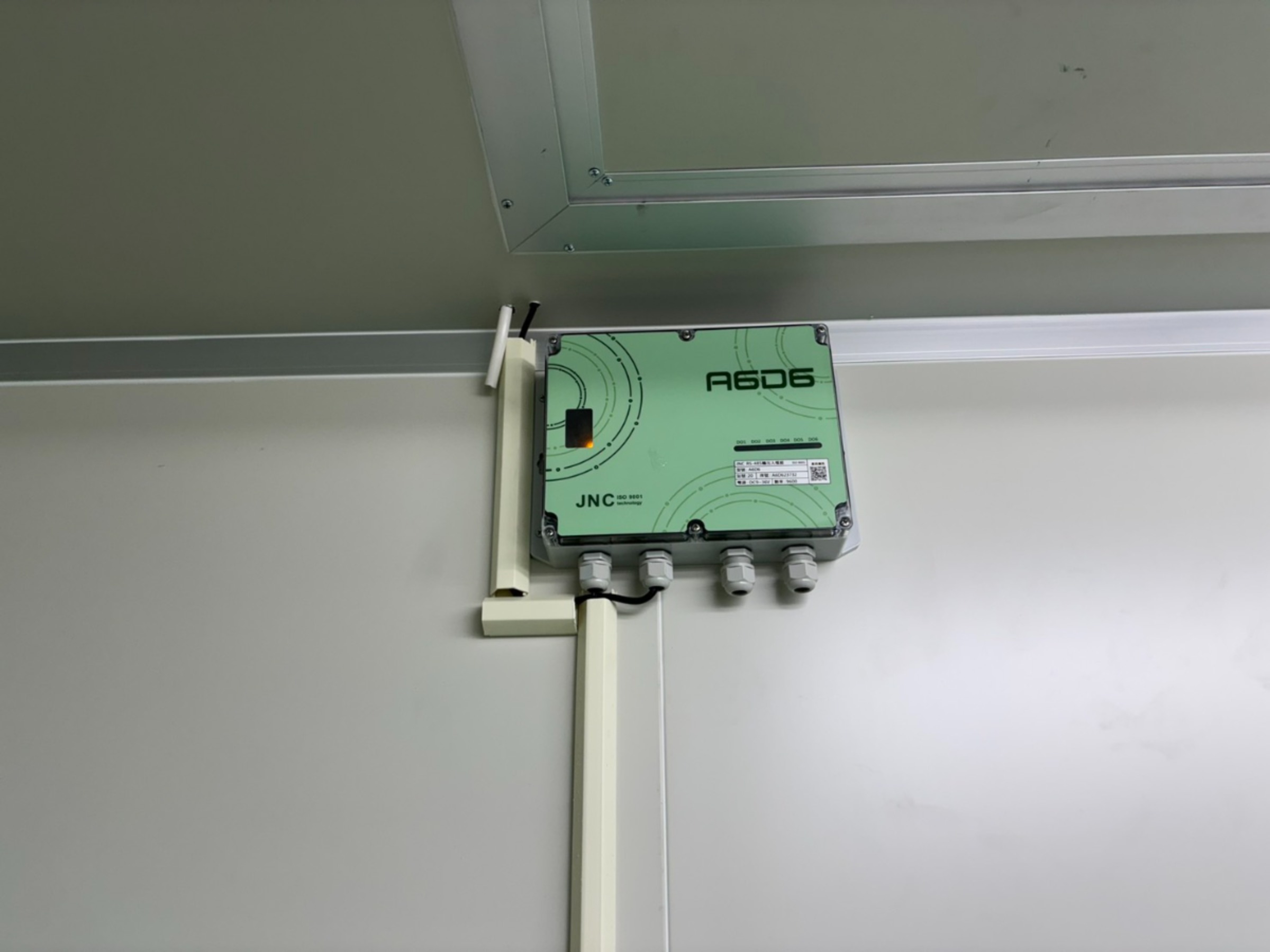

A6D6
Code
1
| Code 1 | Installation types |
|---|---|
| A | Aluminum rails |
| I | IP68 waterproof wall mounting |
| Code 1 | Installation types |
|---|---|
| A | Aluminum rails |
| I | IP68 waterproof wall mounting |
| Aluminum Rails | Waterproof Type | ||
|---|---|---|---|
| Power | Transformer | AC Input : 100~240V (50/60Hz) | |
| DC Output : 12V，maximum 2A | |||
| Equipment | DC Input : 9~36V | ||
| Power Consumption : 2.2W | |||
| Alarm Output | Control Output Points | DO total 6points | |
| Relay Contacts | 1A/110~220VAC ※Connecting load with Relay | ||
| Communication | Interface | RS-485 | |
| Protocol | ModBus RTU | ||
| Signal Input | Input | AI or DI total 8 points (Jump set up) | |
| Signal Input | 4-20mA or 0-5V (Jump set up) | ||
| Physical Condition | Dimension | 205x125x60 (W x H x D，mm) | 252x175x60 (W x H x D，mm) |
| Installation | Aluminum rails | Wall mounting type | |
| Weight | <0.7kg | ||
| Certificate | CE、FCC | ||
| Aluminum Rails | Waterproof Type | ||
|---|---|---|---|
| Power | Transformer | AC Input : 100~240V (50/60Hz) | |
| DC Output : 12V，maximum 2A | |||
| Equipment | DC Input : 9~36V | ||
| Power Consumption : 2.2W | |||
| Control Output Points | DO total 6points | ||
| Relay Contacts | |||
| Communication | Interface | RS-485 | |
| Protocol | ModBus RTU | ||
| Input | AI or DI total 8 points (Jump set up) | ||
| Signal Input | 4-20mA or 0-5V (Jump set up) | ||
| Physical Condition | Dimension | 205x125x60 (W x H x D，mm) | 252x175x60 (W x H x D，mm) |
| Installation | Aluminum rails | Wall mounting type | |
| Weight | <0.7kg | ||
| Certificate | CE、FCC | ||
