IAQ Master is a7-in-1 indoor air quality monitor with multiple functions, including air quality detection, data recording, built-in cloud management, and smart ventilation control.
With advanced technology, it enables remote monitoring and air quality improvement to meet management needs.
–Application areas–

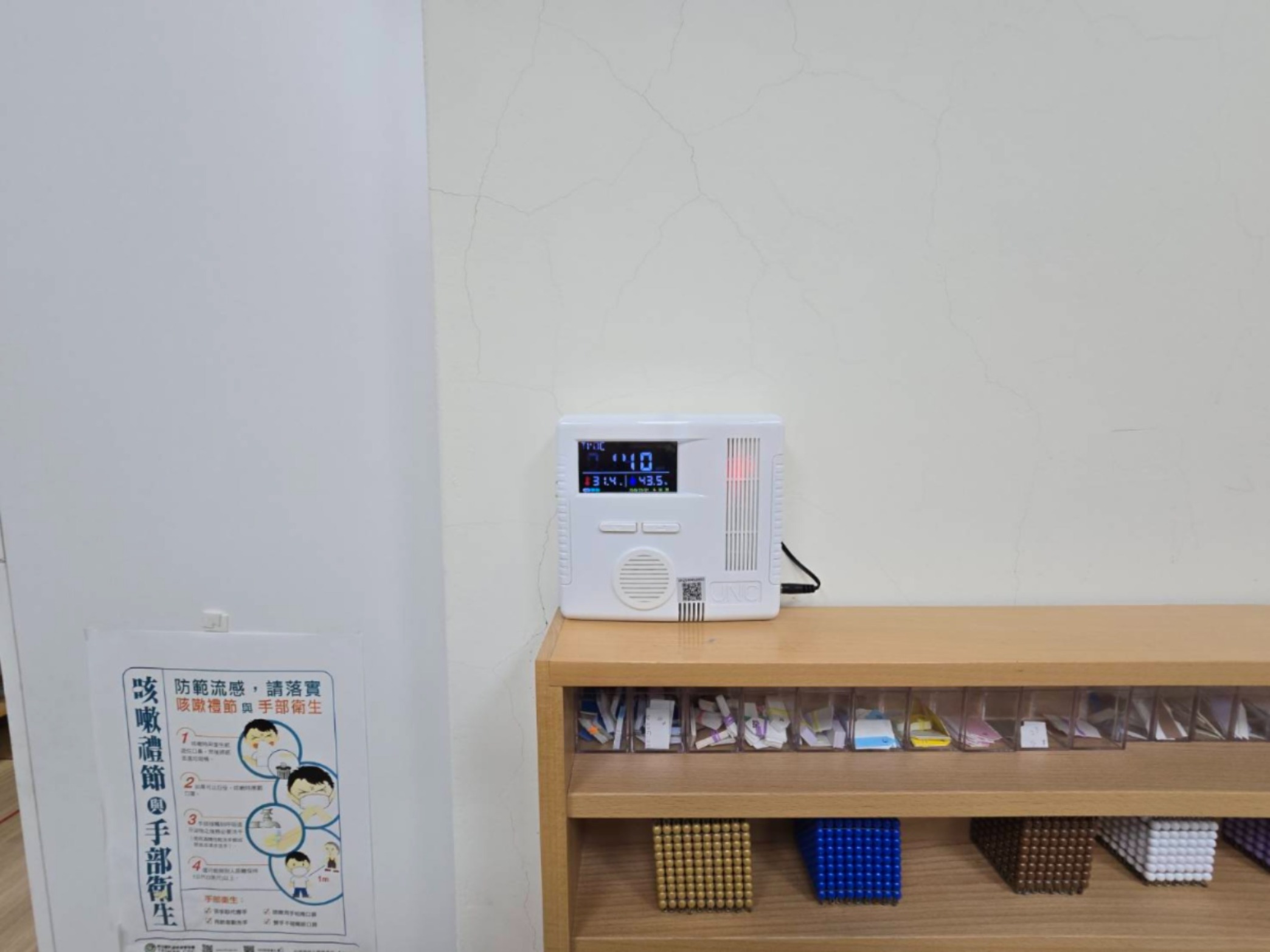

IAQ public displays, offices, stations, airports, museum / art galleries, hospitals, residences, inspections, rapid environmental screening.
Download
Center
Feature of Product
Optional Code & Specifications
IAQS
Code
1
Code
2
Code
3
| Code 1 | Sensor (Multiple Choice) | Code 1 | Sensor (Multiple Choice) | Code 2 | Internet | Code 3 | Case |
|---|---|---|---|---|---|---|---|
| TR | Temp/RH | V | TVOC | N | Ethernet | N | Carton |
| CO2 | CO2 | O3 | O3 | ||||
| CTR | CO2/Temp/RH | P1 | PM10 | ||||
| P2 | PM2.5 | PID100 | Photoionization TVOC | W | Ethernet + Wi-Fi | 1 | Carrying case |
| H | HCHO | 7 | Seven-in-one | ||||
| CO | CO | 9 | Nine-in-one |
| Code 1 | Sensor (Multiple Choice) | Code 1 | Sensor (Multiple Choice) |
|---|---|---|---|
| TR | Temp/RH | V | TVOC |
| CO2 | CO2 | O3 | O3 |
| CTR | CO2/Temp/RH | P1 | PM10 |
| P2 | PM2.5 | PID100 | Photoionization TVOC |
| H | HCHO | 7 | Seven-in-one |
| CO | CO | 9 | Nine-in-one |
| Code 2 | Internet | Code 3 | Case |
|---|---|---|---|
| N | Ethernet | N | Carton |
| W | Ethernet + Wi-Fi | 1 | Carrying case |
| Power | Adapter | AC Input : 100~240V (50/60Hz) |
|---|---|---|
| DC Output : 24V，maximum 1A | ||
| Equipment | DC Input : 24~36V or 5V | |
| Power Consumption : 5.2W | ||
| Environment | 0~50℃，0%~95% (non-condensing) | |
| Alarm Output | Relay Output | 1 point |
| Contact Current | 1A / Contact withstand voltage : DC24V / Relay is required for high load | |
| Communication | Ethernet | RJ-45 / Wi-Fi (Optional) |
| Interface | RS-485 | |
| Protocol | Modbus RTU、Modbus TCP、Web Service and Modbus Inverse | |

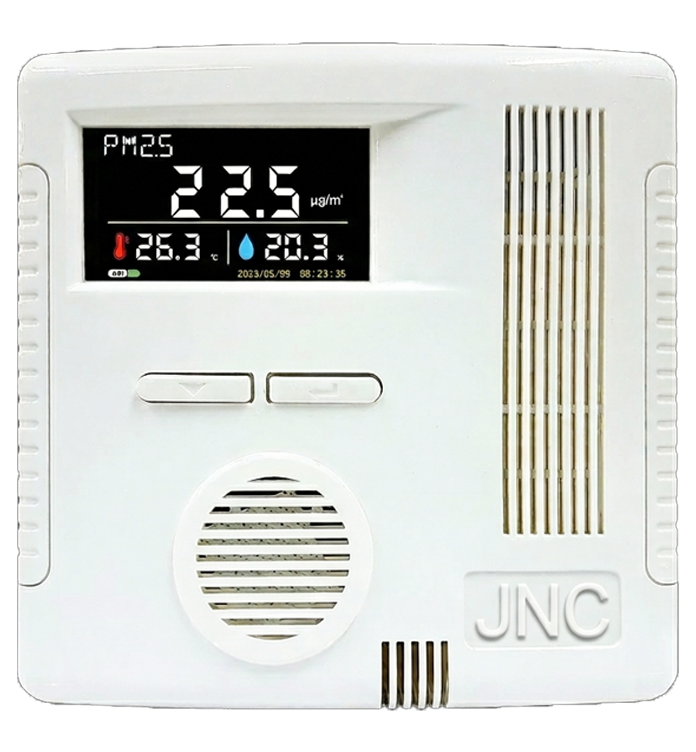

| Display Panel | Display | LCD monitor 73mm x 44mm in 3 colors |
| Mode | AQI 6-level display in name, detector value, unit, data of Pres. and Avg. | |
| Rang | 0~9999 | |
| Physical Condition | Dimension | 170x160x45 (W x H x D，mm) |
| Weight | ≦1Kg | |

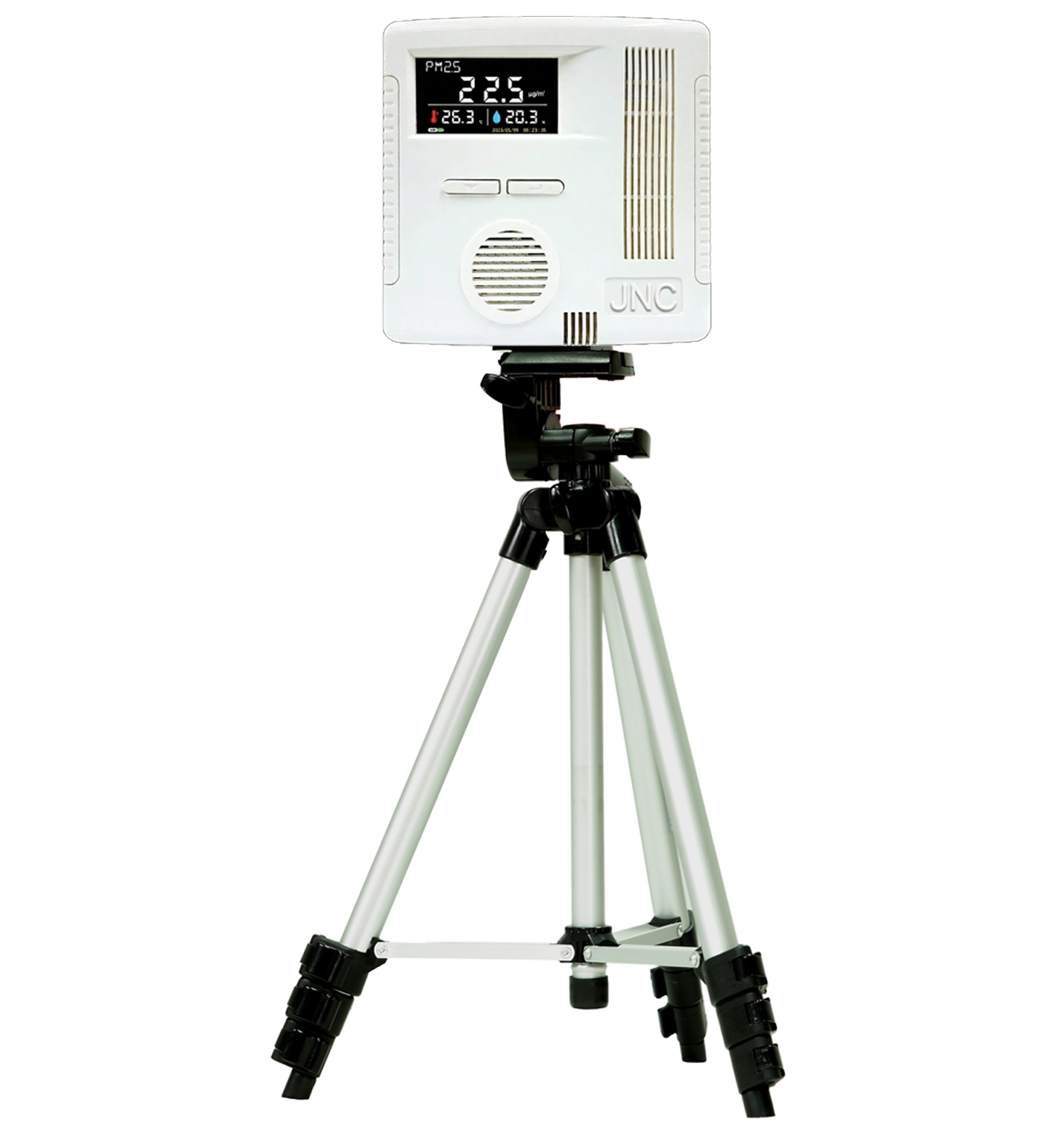

| Installation | Wall mounting / Portable | |
| Housing | Material | ABS |
| Record | USB recorder, up to 64 GB max | |
| Certificate | CE、FCC | |
| Patent | R.O.C. Patent No. M490090 / No. M474956 / No. M455143 China Patent No. 3110165 / No.2514208 / No.396825 | |
| Power | Adapter | AC Input : 100~240V (50/60Hz) |
|---|---|---|
| DC Output : 24V， maximum 1A | ||
| Equipment | DC Input : 24~36V or 5V | |
| Power Consumption : 5.2W | ||
| Environment | 0~50℃，0%~95% (non-condensing) | |
| Alarm Output | Relay Output | 1 point |
| Contact Current | 1A / Contact withstand voltage : DC24V / Relay is required for high load | |
| Communication | Ethernet | RJ-45 / Wi-Fi (Optional) |
| Interface | RS-485 | |
| Protocol | Modbus RTU、Modbus TCP、 Web Service and Modbus Inverse | |
| Display Panel | Display | LCD monitor 73mm x 44mm in 3 colors |
| Mode | AQI 6-level display in name, detector value, unit, data of Pres. and A | |
| Rang | 0~9999 | |
| Physical Condition | Dimension | 170x160x45 (W x H x D，mm) |
| Weight | ≦1Kg | |
| Installation | Wall mounting / Portable | |
| Housing | Material | ABS |
| Record | USB recorder, up to 64 GB max | |
| Certificate | CE、FCC | |
| Patent | R.O.C. Patent No. M490090 / No. M474956 / No. M455143 China Patent No. 3110165 / No.2514208 / No.396825 | |
| Sensor Principle | Range | T90 | Operating Temperature | Resolution | Accuracy | Environmental Equilibrium Time |
|---|---|---|---|---|---|---|
| Temp (Resistance) | -40~125℃ | <60 S | -20~60℃ | 0.1℃ | ±0.4℃ | 10min |
| RH (Capacitive) | 0~100% | <60 S | -20~60℃ | 0.1% | ±3% | 10min |
| CO₂ (Infrared) | 0~10,000ppm | <120 S | 0~50℃ | 1ppm | ±30ppm ±3% of Reading | 10sec |
| PM2.5 (Laser) | 0~1,000µg / m³ | <90 S | -10~65℃ | 0.1 µg / m³ | ±10µg / m³ ±5% of Reading | 5min |
| HCHO (Electrochemical) | 0.01~2.00ppm | <120 S | -10~50℃ | 0.01ppm | ≤±0.02ppm ±2% of Reading | 10min |
| CO (Electrochemical) | 0~100ppm | <180 S | 0~50℃ | 0.1ppm | ±5ppm | 10min |
| TVOC (Semiconductor) | 0~300ppm | <90 S | 0~40℃ | 0.01ppm | ±10% | 10min |
| O³ (Semiconductor) | 0.01~2.00ppm | <120 S | 0~40℃ | 0.01ppm | ±10% | 10min |
| PM10 (Algorithm) | 0~1,200µg / m³ | <90 S | -10~65℃ | 0.1 µg / m³ | ±10µg / m³ ±5% of Reading | 5min |
| PID100 (Photoionization) | 0-100ppm | ≦5 S | -10~60℃ | 25ppb | ±2% (Reproducibility) | ≦60 S |
| Sensor Principle | Range | T90 |
|---|---|---|
| Temp (Resistance) | -40~125℃ | <60 S |
| RH (Capacitive) | 0~100% | <60 S |
| CO₂ (Infrared) | 0~10,000ppm | <120 S |
| PM2.5 (Laser) | 0~1,000µg / m³ | <90 S |
| HCHO (Electrochemical) | 0.01~2.00ppm | <120 S |
| CO (Electrochemical) | 0~100ppm | <180 S |
| TVOC (Semiconductor) | 0~300ppm | <90 S |
| O³ (Semiconductor) | 0.01~2.00ppm | <120 S |
| PM10 (Algorithm) | 0~1,200µg / m³ | <90 S |
| PID100 (Photoionization) | 0-100ppm | ≦5 S |
| Sensor Principle | Operating Temperature | Resolution |
|---|---|---|
| Temp (Resistance) | -20~60℃ | 0.1℃ |
| RH (Capacitive) | -20~60℃ | 0.1% |
| CO₂ (Infrared) | 0~50℃ | 1ppm |
| PM2.5 (Laser) | -10~65℃ | 0.1 µg / m³ |
| HCHO (Electrochemical) | -10~50℃ | 0.01ppm |
| CO (Electrochemical) | 0~50℃ | 0.1ppm |
| TVOC (Semiconductor) | 0~40℃ | 0.01ppm |
| O³ (Semiconductor) | 0~40℃ | 0.01ppm |
| PM10 (Algorithm) | -10~65℃ | 0.1 µg / m³ |
| PID100 (Photoionization) | -10~60℃ | 25ppb |
| Sensor Principle | Accuracy | Environmental Equilibrium Time |
|---|---|---|
| Temp (Resistance) | ±0.4℃ | 10min |
| RH (Capacitive) | ±3% | 10min |
| CO₂ (Infrared) | ±30ppm ±3% of Reading | 10sec |
| PM2.5 (Laser) | ±10µg / m³ ±5% of Reading | 5min |
| HCHO (Electrochemical) | ≤±0.02ppm ±2% of Reading | 10min |
| CO (Electrochemical) | ±5ppm | 10min |
| TVOC (Semiconductor) | ±10% | 10min |
| O³ (Semiconductor) | ±10% | 10min |
| PM10 (Algorithm) | ±10µg / m³ ±5% of Reading | 5min |
| PID100 (Photoionization) | ±2% (Reproducibility) | ≦60 S |
