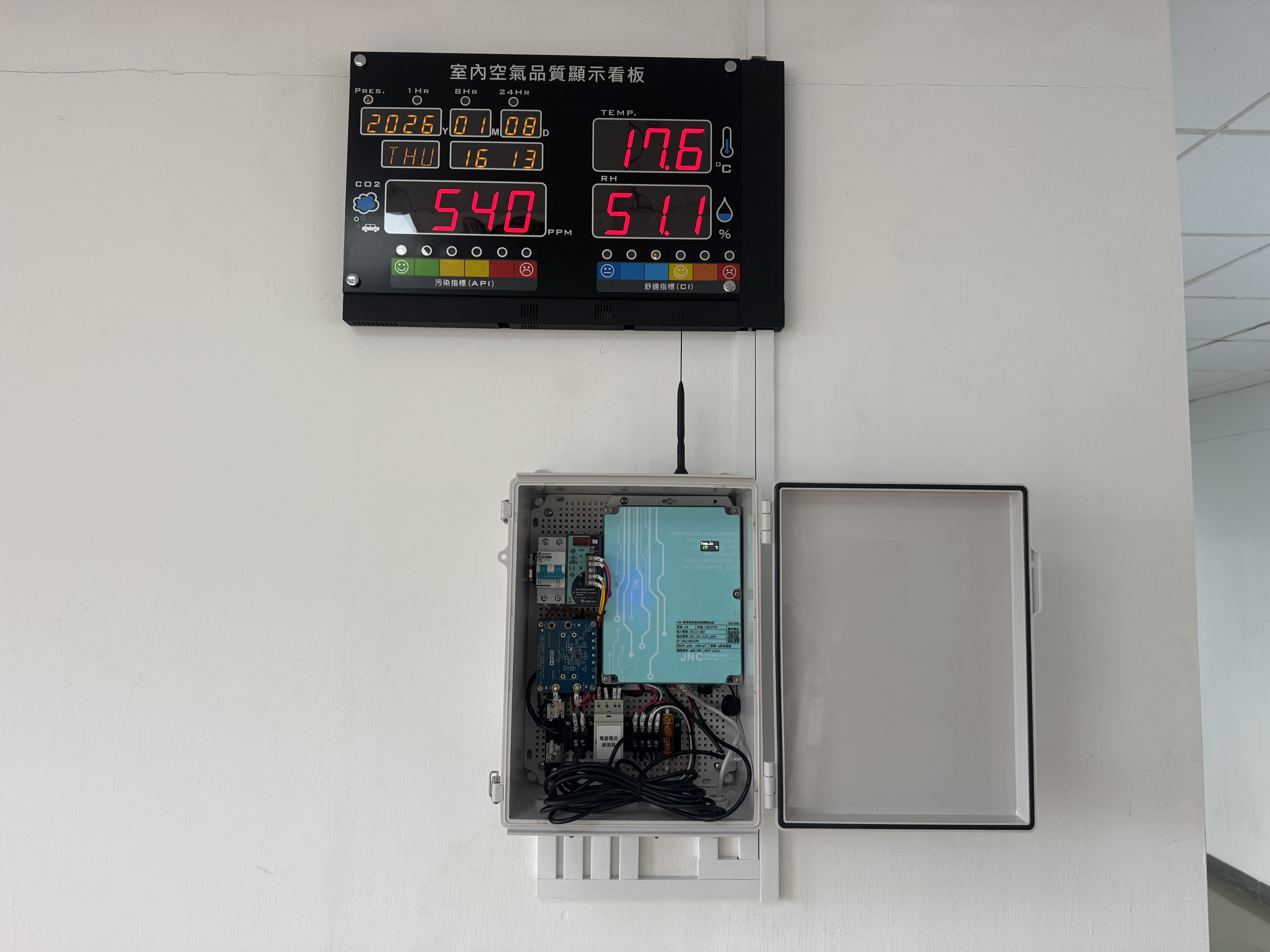

6-channel IAQ Display
CTR230-6
This multifunctional air quality monitor
offers comprehensive monitoring in compliance with regulations.
It displays and records real-time, hourly, and 8-hour average values.
No app required—access via web interface.
Designed for accurate data, easy management,
and simplified maintenance,
it's the ideal tool for efficient air quality control.
– Application areas –
IAQ public displays, laboratories, stations, airports, museums, galleries.
Download
Center
Feature of Product
Optional Code & Specifications
| Power | Adapter | AC Input : 100~240V(50/60Hz) | |
|---|---|---|---|
| DC Output : 24V，maximum 1A | |||
| Equipment | DC Input : 9~36V | ||
| Power Consumption：11.4W | |||
| Working Environment | Operating Temperature | -20~60℃ | |
| Operating Humidity | 0 ~ 95% RH (non-condensing) | ||
| Storage Condition | -30~70℃ | ||
| Alarm Output | Relay Output | 3 points | |
| Relay Contact Capacity | AC90~250V ≦ 1A | ||
| Communication | Ethernet | RJ-45 with web service function, protocol Modbus TCP | |
| Interface | RS-485 / RS-232 x 1port (JUMP1 of 2)、RS-485 x 1port | ||
| Protocol | Modbus RTU | ||
| Signal Output (AO) | Output Point | 3 points | |
| Signal output | 4-20mA (AO, PID or output control manually) | ||
| Display Board | Display | 2.3 inch Red LED | |
| Date/Week/Time | 1.0 inch Yellow LED | ||
| Display mode | Pres, 1H, 8H, 24H average (Each) | ||
| Comfort Index | 6 level LED indicator (meet the laws) | ||
| Pollution Index | 6 level LED indicator (meet the laws) or set up by self | ||
| Physical Conditions | Item | CTR230-6 | Sensor (HCOC/CO/PM2.5) |
| Dimension | 590x368x30.2 (W x H x D，mm) | 104x135x40 (W x H x D，mm) | |
| Weight | ≦3kg | 128g | |
| Housing | Material | Iron Cast Painted | ABS |
| Record | USB record, maximum to 64GB | ||
| Software | USB readout and graph software | ||
| Certificate | CE、FCC | ||
| Patent | R.O.C. Patent No. M455143 / No.M474956 / No.M490090 China Patent No. 3110165 / No.3968342 / No.3968253 | ||
| Power | Adapter | AC Input : 100~240V(50/60Hz) | |
|---|---|---|---|
| DC Output : 24V，maximum 1A | |||
| Equipment | DC Input : 9~36V | ||
| Power Consumption：11.4W | |||
| Working Environment | Operating Temperature | -20~60℃ | |
| Operating Humidity | 0 ~ 95% RH (non-condensing) | ||
| Storage Condition | -30~70℃ | ||
| Alarm Output | Relay Output | 3 points | |
| Relay Contact Capacity | AC90~250V ≦ 1A | ||
| Communication | Ethernet | RJ-45 with web service function, protocol Modbus TCP | |
| Interface | RS-485 / RS-232 x 1port (JUMP1 of 2)、 RS-485 x 1port | ||
| Protocol | Modbus RTU | ||
| Signal Output (AO) | Output Point | 3 points | |
| Signal Output | 4-20mA (AO, PID or output control manually) | ||
| Display Board | Display | 2.3 inch Red LED | |
| Date/Week/ Time | 1.0 inch Yellow LED | ||
| Display mode | Pres, 1H, 8H, 24H average (Each) | ||
| Comfort Index | 6 level LED indicator (meet the laws) | ||
| Pollution Index | 6 level LED indicator (meet the laws) or set up by self | ||
| Physical Conditions | Item | CTR230-6 | Sensor (HCOC/ CO/PM2.5) |
| Dimension | 590x368x30.2 (W x H x D， mm) | 104x135x40 (W x H x D， mm) | |
| Weight | ≦3kg | 128g | |
| Housing | Material | Iron Cast Painted | ABS |
| Record | USB record, maximum to 64GB | ||
| Software | USB readout and graph software | ||
| Certificate | CE、FCC | ||
| Patent | R.O.C. Patent No. M455143 / No.M474956 / No.M490090 China Patent No. 3110165 / No.3968342 / No.3968253 | ||
| Sensor Principle | Range | T90 | Operating Temperature | Resolution | Accuracy | Warm-up Time |
|---|---|---|---|---|---|---|
| Temp (Resistive) | -40~125℃ | <60 S | -20~60℃ | 0.1℃ | ±0.4℃ | 10min |
| RH (Capacitive) | 0~100% | <60 S | -20~60℃ | 0.1% | ±3% | 10min |
| CO₂ (Infrared) | 0~10,000ppm | <120 S | 0~50℃ | 1ppm | ±30ppm ±2% of Reading | ≦20 S |
| PM2.5 (Laser) | 0~1,000µg / m³ | <90 S | -10~65℃ | 0.1 µg / m³ | ±10µg / m³ ±5% of Reading | 5min |
| HCOC (Electrochemical) | 0.01~2.00ppm | <180 S | -10~50℃ | 0.01ppm | ≦±0.02ppm ±2% of Reading | 10min |
| CO (Electrochemical) | 0~100ppm | <180 S | 0~50℃ | 0.1ppm | ±5ppm | 10min |
| Sensor Principle | Range | T90 | Operating Temperature |
|---|---|---|---|
| Temp (Resistive) | -40~125℃ | <60 S | -20~60℃ |
| RH (Capacitive) | 0~100% | <60 S | -20~60℃ |
| CO₂ (Infrared) | 0~10,000ppm | <120 S | 0~50℃ |
| PM2.5 (Laser) | 0~1,000µg / m³ | <90 S | -10~65℃ |
| HCOC (Electrochemical) | 0.01~2.00ppm | <180 S | -10~50℃ |
| CO (Electrochemical) | 0~100ppm | <180 S | 0~50℃ |
| Sensor Principle | Resolution | Accuracy | Warm-up Time |
|---|---|---|---|
| Temp (Resistive) | 0.1℃ | ±0.4℃ | 10min |
| RH (Capacitive) | 0.1% | ±3% | 10min |
| CO₂ (Infrared) | 1ppm | ±30ppm ±2% of Reading | ≦20 S |
| PM2.5 (Laser) | 0.1 µg / m³ | ±10µg / m³ ±5% of Reading | 5min |
| HCOC (Electrochemical) | 0.01ppm | ≦±0.02ppm ±2% of Reading | 10min |
| CO (Electrochemical) | 0.1ppm | ±5ppm | 10min |
