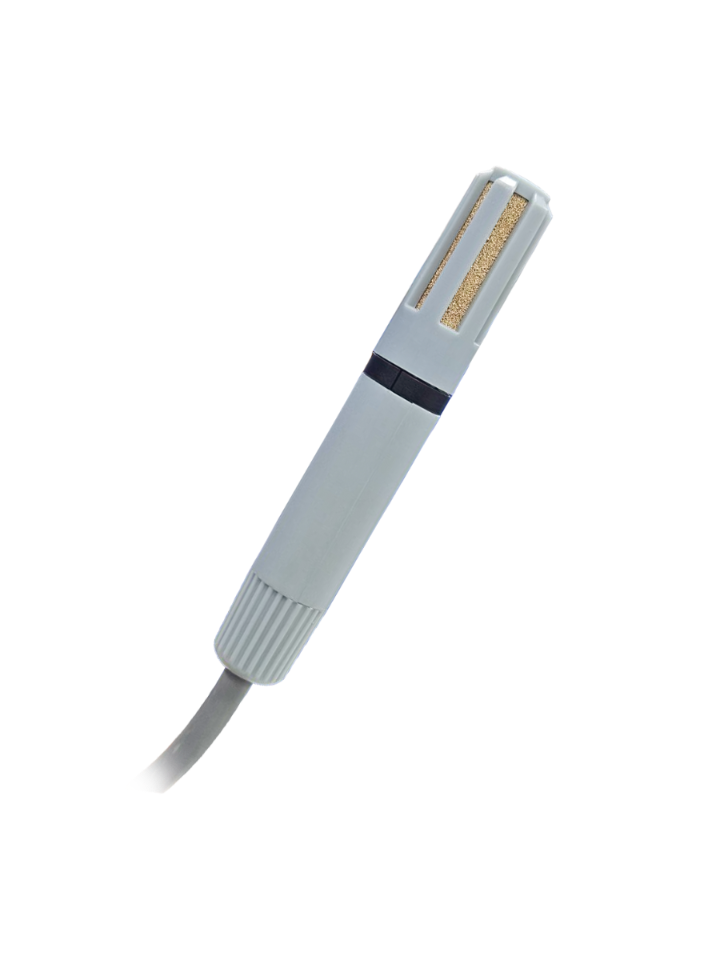

Outdoor Temperature and Humidity TR485

Home Smart City Ourdoor Temperature and Humidity Sensor TR485

‧Wide-range DC 5~30V input, only 0.18W consumption ‧High accuracy: ±0.3℃ for temperature, ±3% for humidity ‧RS-485 Modbus RTU, direct data output without conversion, easy to integrate ‧Excellent long-term stability keeps readings accurate in extended service –Applications–

Indoor air quality, server rooms, warehousing, greenhouses

Download Center Catalog User Manual Product FAQ

Feature of Product

Wide Voltage & Low Power Wide-range DC 5~30V input, only 0.18W consumption

High-Precision Measurement High accuracy: ±0.3℃ for temperature, ±3% for humidity

Easy Integration RS485 interface withstandard Modbus RTUprotocol enablesdirect data output andfast system integration.

Excellent long-term stability Excellent long-term stability keeps readings accurate in extended service

Optional Code & Specifications

TR485 Code 1

Code 1	Cable Length
N	10 meters
C	10 meters + Quick Connector
Value N	Cable Length
Value C	Cable Length + Quick Connector

Power Supply	DC3.6~30V
Power Supply	Power Consumption : 0.1W
Operating Environment	-40~85℃
Communication Method	RS485 Modbus RTU
Housing Material	UV-Resistant ABS
IP Rating	IP54
Product Dimensions	188X140/mm
Mounting Bracket Dimensions	195x90×125.9mm
Temperature Specifications	≦ 1.5 kg
Temperature Specifications	Measurement Range	-40°C ~ 80°C
	Accuracy	±0.3℃
	Resolution	0.01℃
Humidity Specifications	Measurement Range	0~100%
	Accuracy	＋3%
	Resolution	0.01%
