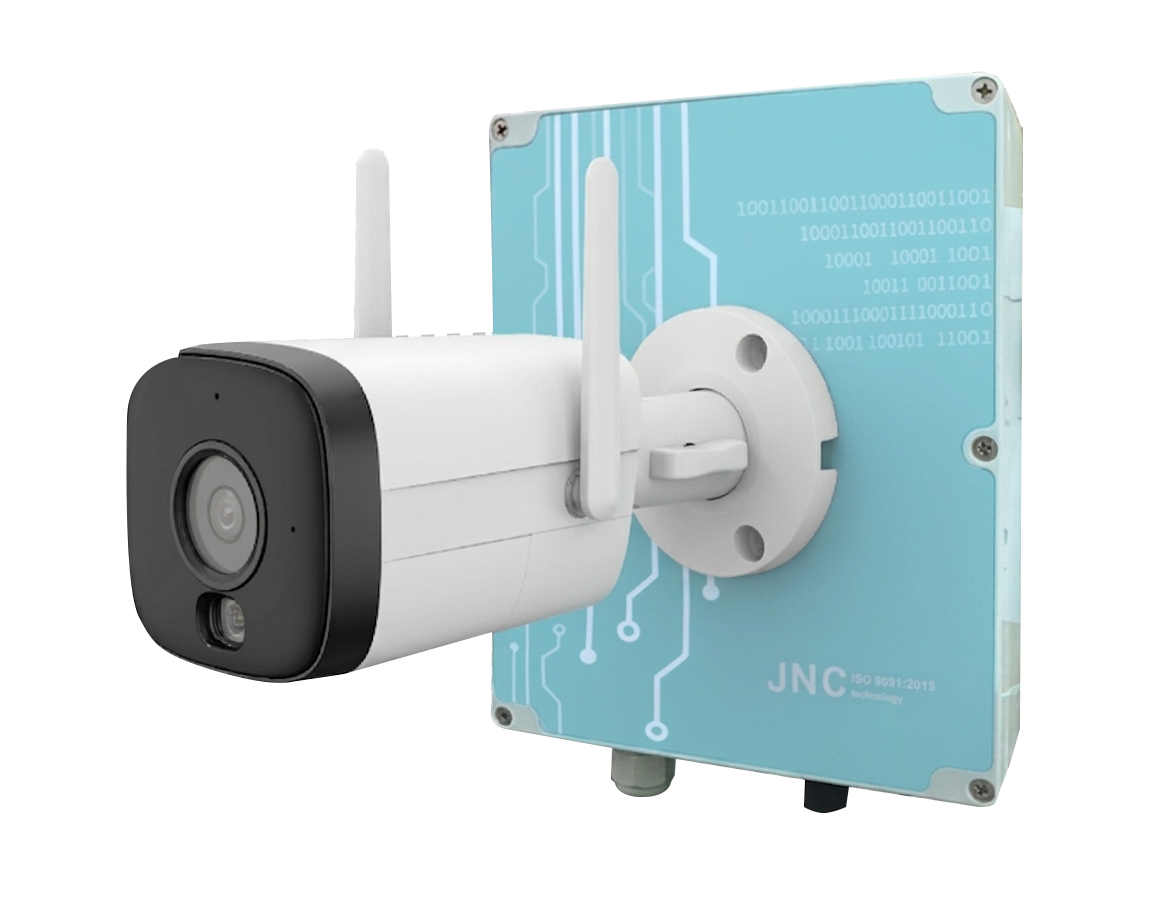

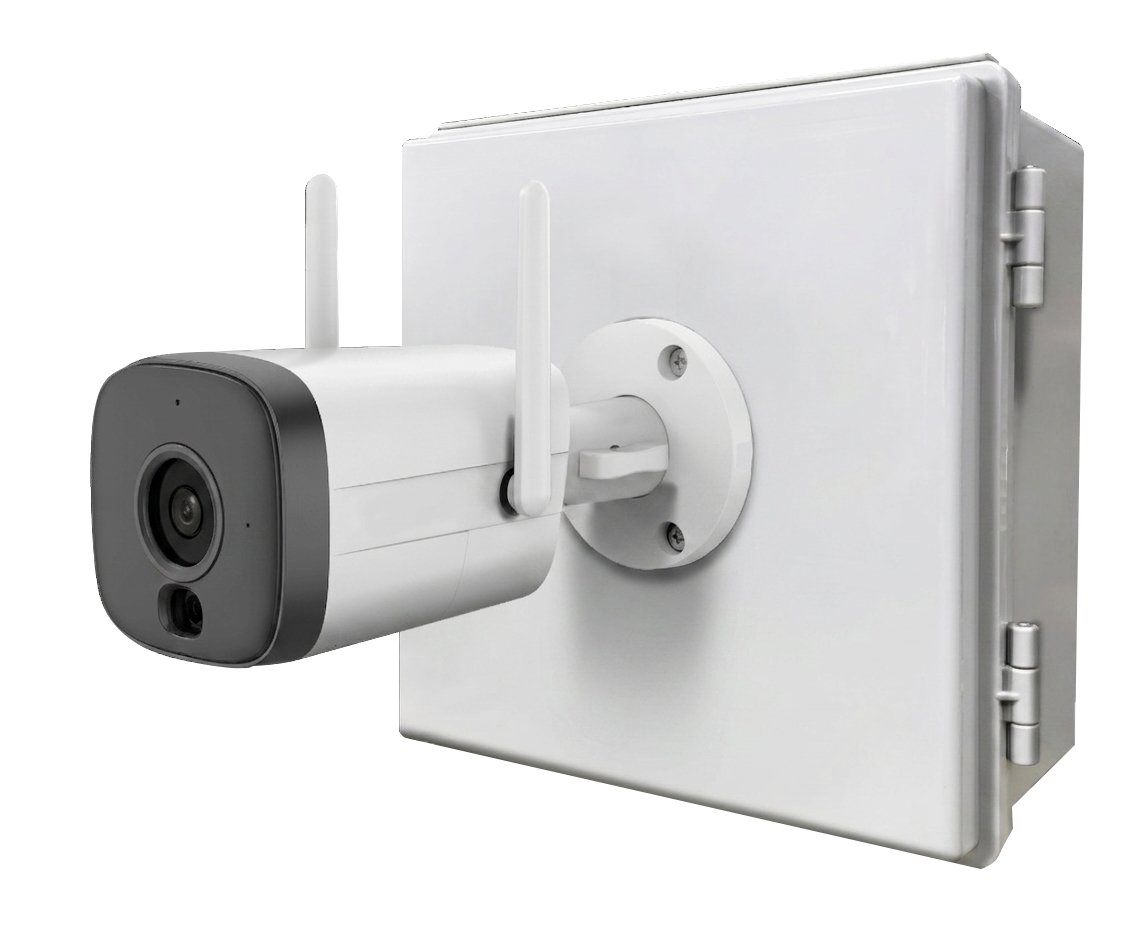

IoT Environment Camera
IEC
Equipped with a 1/2.8" 2MP CMOS sensor, delivering high-definition 1920x1080 video. Features automatic day/night switching with a minimum illumination of 0.08Lux and infrared range up to 30 meters.
The camera is rated IP67 waterproof, and the 4G unit is IP68 waterproof.
Live video can be viewed directly via the web platform, with automatic or fixed frequency band selection to ensure optimal communication quality.
Download
Center
Feature of Product
Optional Code & Specifications
IEC
Code
1
Code
2
Code
3
Code
4
| Code 1 | Communication | Code 2 | Callback Function | Code 3 | Types of cameras | Code 4 | Photo Push |
|---|---|---|---|---|---|---|---|
| N | Ethernet | N | Live Image | 200 | 2 million pixels No contact function | N | None |
| 4G | Including 4G router | 300w |
3 million pixels with Wi-Fi |
||||
| H | HUB | 7D | 7 days of recording and playback | 500 | 5 million pixels With input/output dry contacts | FTP | With photo push and intrusion or crossing line settings |
| 4GH | Including 4G router and HUB |
| Code 1 | Communication | Code 2 | Callback Function |
|---|---|---|---|
| N | Ethernet | N | Live Image |
| 4G | Including 4G router | ||
| H | HUB | 7D | 7 days of recording and playback |
| 4GH | Including 4G router and HUB |
| Code 3 | Types of cameras | Code 4 | Photo Push |
|---|---|---|---|
| 200 | 2 million pixels No contact function | N | None |
| 300w |
3 million pixels with Wi-Fi |
||
| 500 | 5 million pixels With input/output dry contacts | FTP | With photo push and intrusion or crossing line settings |
| Model (Code 3) | IEC-N-N-200-N | IEC-N-N-300w-N |
IEC-N-N-500-N |
|---|---|---|---|
| Power Supply | DC 12V/2.1W (MAX : 4.2W) | DC 12V/2.2W (MAX : 7.4W) |
DC 12V/2.2W(MAX:7.4W) |
|
Working temperature and humidity |
-40~60°C / ≦95% | -30~50 ℃ / ≦95% |
-40~60 ℃ / ≦95% |
| Effective Pixels | 2 million pixels，1920×1080(H x V) | 3 million pixels，2304×1296(V) |
5 million pixels, 2960(H)×1668(V) |
|
Minimum illumination |
0.002 [email protected] (Color) 0.0002 [email protected] (Black and White) 0 lux (Illuminator on) |
0.005 Lux @F1.6 (Color,30 IRE) 0.0004 Lux @F1.6 (Black and White,30 IRE) 0 lux (Illuminator on) |
0.007 lux @F1.6(Color,30 IRE) 0.0007 lux @F1.6(Black and White,30 IRE) 0 Lux(Illuminator on) |
| Infrared |
1 group， maximum lighting distance 30 meters |
4 groups, maximum lighting distance 80 meters |
|
| Focal Length | 2.8mm / 3.6mm | 3.6 mm |
3.6 mm / 6 mm / 8 mm |
| Perimeter Protection |
Intrusion, crossing the line (supporting the classification and accurate detection of people and vehicles) |
||
|
Waterproof grade |
IP67 | ||
| Camera size | Length 166.2 mm × Width 70 mm × Height 70 m | Length 172.4 mm × Width 83.3 mm × Height 75 m |
Length 238.5 mm × Width 90.7 mm × Height 90.7 mm |
| IEC-N(4G)-N-N-N | IEC-H(4GH)-N-N-N | |
| Cabinet size | 252x175x60 (W x H x D) | 300x300x150 (W x H x D) |
| Model (Code 3) | IEC-N-N-200-N | IEC-N-N-500-N | IEC-N-N-500-N | |
|---|---|---|---|---|
| Power Supply | DC 12V/2.1W (MAX : 4.2W) | DC 12V/2.2W (MAX : 7.4W) | DC 12V/2.2W (MAX : 7.4W) | |
| Working temperature and humidity | -40~60°C / ≦95% | -30~50 ℃ / ≦95% | -40~60°C / ≦95% | |
| Effective Pixels | 2 million pixels， 1920×1080(H x V) | 3 million pixels，2304×1296(V) | 5 million pixels， 2960×1668(H x V) | |
| Minimum illumination | 0.002 [email protected] (Color) 0.0002 [email protected] (Black and White) 0 lux (Illuminator on) |
0.005 Lux @F1.6 (Color,30 IRE) 0.0004 Lux @F1.6 (Black and White,30 IRE) 0 lux (Illuminator on) |
0.007 Lux @F1.6 (Color,30 IRE) 0.0007 Lux @F1.6 (Black and White,30 IRE) 0 Lux (Illuminator on) | |
| Infrared | 1 group， maximum lighting distance 30 meters | 4 groups， maximum lighting distance 80 meters | ||
| Focal Length | 2.8mm / 3.6mm | 3.6 mm | 3.6 mm / 6 mm / 8 mm | |
| Perimeter Protection | Intrusion, crossing the line (supporting the classification and accurate detection of people and vehicles) | |||
| Waterproof grade | IP67 | |||
| Camera size | Length 166.2 mm × Width 70 mm × Height 70 m) | 2Length 172.4 mm × Width 83.3 mm × Height 75 m | Length 238.5 mm × Width 90.7 mm × Height 90.7 mm | |
| IEC-N(4G)-N-N-N | IEC-H(4GH)-N-N-N | |
| Cabinet size | 252x175x60 (W x H x D) | 300x300x150 (W x H x D) |
