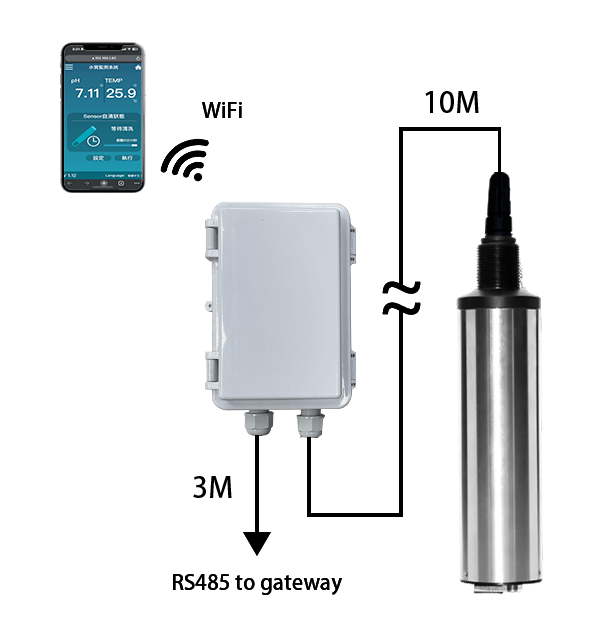

Blue-Green Algae Sensor BGA
Blue-Green Algae Sensor

BGA

‧Principle: fluorescence. A specific wavelength excites phycocyanin; the emitted intensity gives the concentration. ‧Housing: 316L stainless steel, corrosion resistant. ‧Dual RS-485 and WiFi interfaces; RS-485 runs Modbus. ‧Reagent-free, no secondary pollution, for online monitoring. ‧Standard-solution calibration allows on-site adjustment. ‧Built-in wiper stops fouling; interval is adjustable. ‧Measures and outputs water temperature simultaneously. ‧P68 rated, CNS 14165 tested, for long-term submerged use.


–Application areas–

Lakes, reservoirs, rivers, aquaculture, raw water.

Blue-Green Algae Sensor BGA
Optional Code & Specifications
-RS485 type-

BGA Code 1  NN

 Code 1 Sensor Cable  Code 1 Sensor Cable
10N 10 m + Bare Wire 10C 10 m + Quick Conn.
Value N Length + Bare Wire Value C Length + Quick Conn.

※RS485 Type: Code 2 and Code 3 are fixed at N

Principle Fluorescence
Range 100~300,000 cells/mL
Temp. Range 0°C ~ 50°C
Accuracy ±3% F.S.
Temp. Acc. ±0.5°C
Max. Press. 0.2MPa
Calibration Standard Solution
Interface RS-485 Modbus RTU
Power 9~36VDC
Weight 1.0 kg (with 10 m cable)
Dimensions Ø50*210mm
Protection IP68 (CNS 14165)
Housing SUS 316L Stainless Steel
Origin Taiwan

-Wi-Fi type-

SS-485 - Code 1 - Code2 - W

 Code 1 Sensor to Wi-Fi Box  Code 2 Wi-Fi Box to Host
10N 10 m + Bare Wire 3N 3 m + Bare Wire
3C 3 m + Quick Conn.
10C 10 m + Quick Conn. 10N 10 m + Bare Wire
10C 10 m + Quick Conn.
Value N Length + Bare Wire 20N 20 m + Bare Wire
20C 20 m + Quick Conn.
Value C Length + Quick Conn. ValueN Length + Bare Wire
ValueC Length + Quick Conn

Principle Fluorescence
Range 100~300,000 cells/mL
Temp. Range 0°C ~ 50°C
Accuracy ±3% F.S.
Temp. Acc. ±0.5°C
Max. Press. 0.2MPa
Calibration Standard Solution
Interface  RS-485, Wi-Fi web
Power 9~36VDC
Weight 1.0 kg (with 10 m cable)
Dimensions Ø50*210mm
Protection IP68 (CNS 14165)
Housing SUS 316L Stainless Steel
Origin Taiwan
